Configuring Combinatorial Data Generation in algoQA

Consider an example scenario to test the login functionality of a website using different username and password combinations.

User actions include:

1. Enter a username from the list:
   • User1, User2, Guest, Admin.
2. Enter a password from the list:
   • Pass123, Pass245, Guest@123, Admin@123.
3. Click the Login button.

Possible combinations of test cases:
The combinatorial data set will consist of all possible pairs of usernames and passwords.

In the preceding example, you have 4 parameters for username and 4 parameters for password. algoQA will generate 16 combinations (4 usernames × 4 passwords = 16 test cases).

Configuring Combinatorial Data Generation in algoQA

Perform the following:

1. Log into algoQA using your credentials.

2. Refer Creating a Project article to create a project.

3. After creating a project, you must configure the node.

   Perform the following:

   1. Click the Add Node ‘+’ button to add a node in Canvas and enter the name in the Node by clicking the edit icon in node.
   2. Click on the node to view the configuration, then configure the feature and UI elements for a specific node.

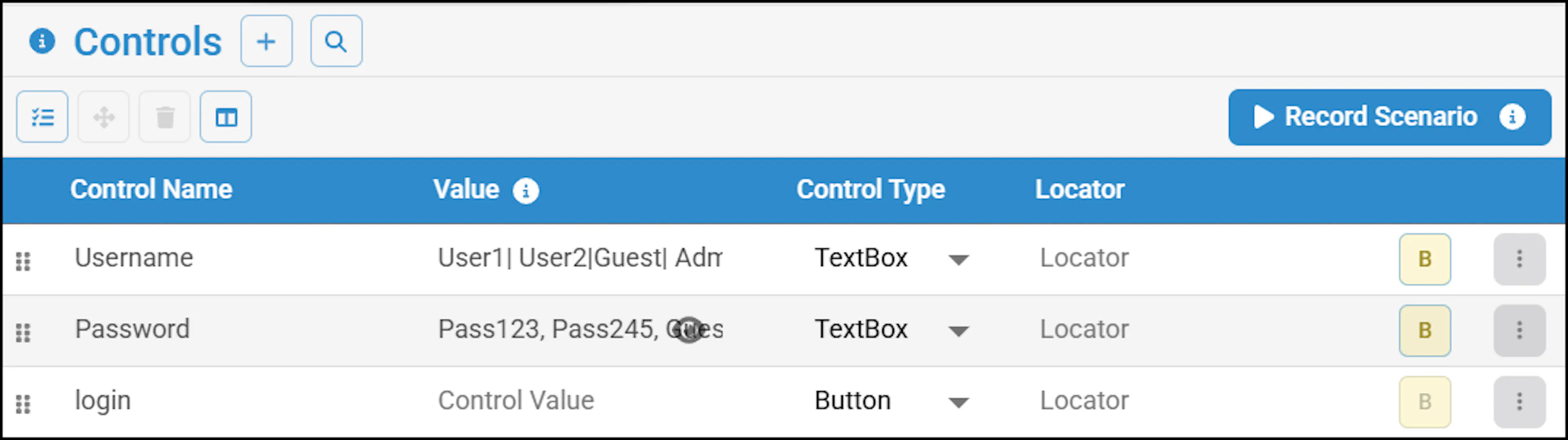

      Node	Feature	UI Elements
      Login Screen	Login	username with parameters as User1| User2|Guest| Admin
      Login Screen	Login	password with parameters as Pass123, Pass245, Guest@123, Admin@123
      Login Screen	Login	login button
      In Test Design, configure the feature and UI elements for a specific node.

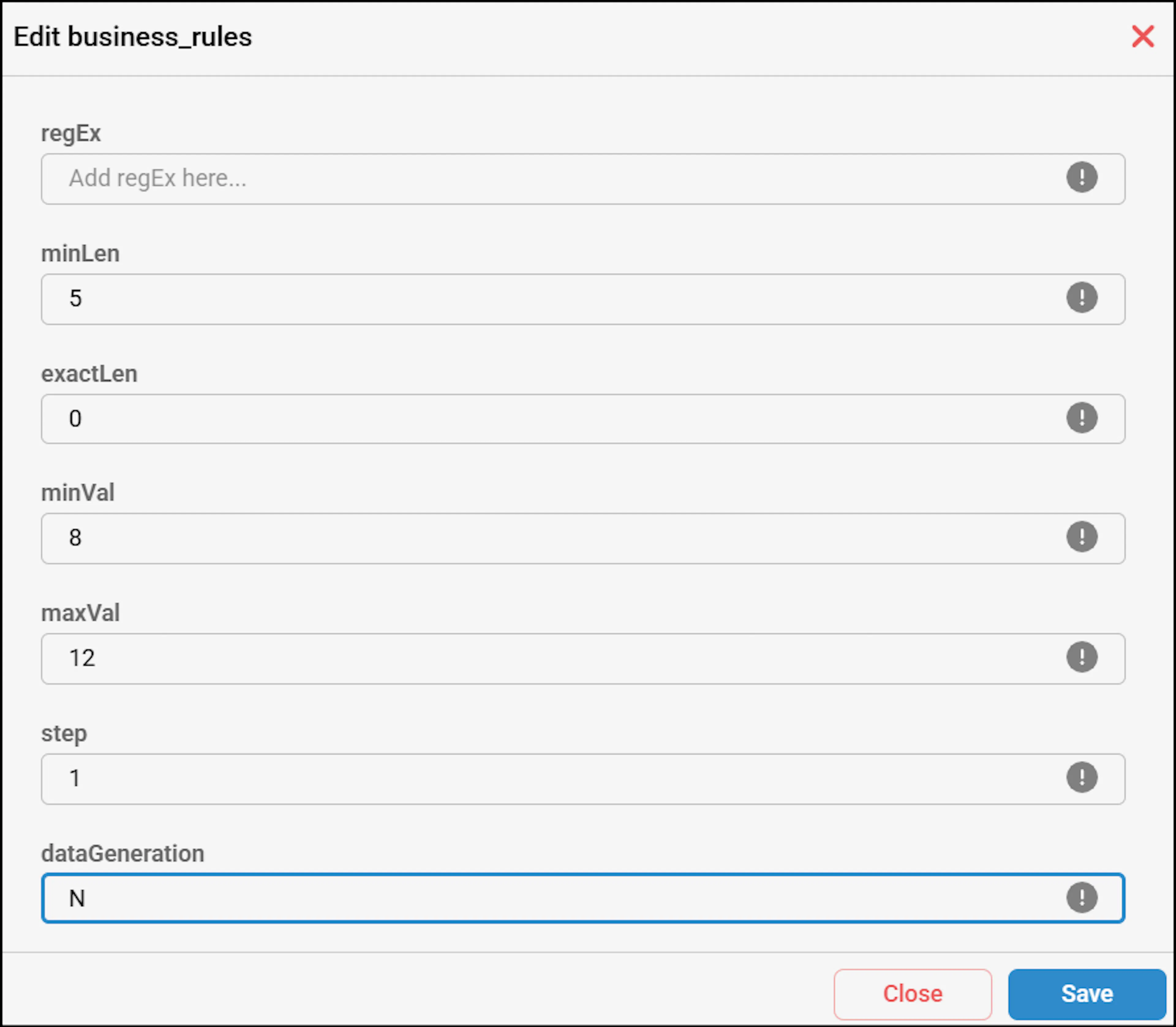

   3. After configuring all the UI elements, you must set the data generation to N for only required UI elements (username and password) by clicking the Business Rules button and click Save.

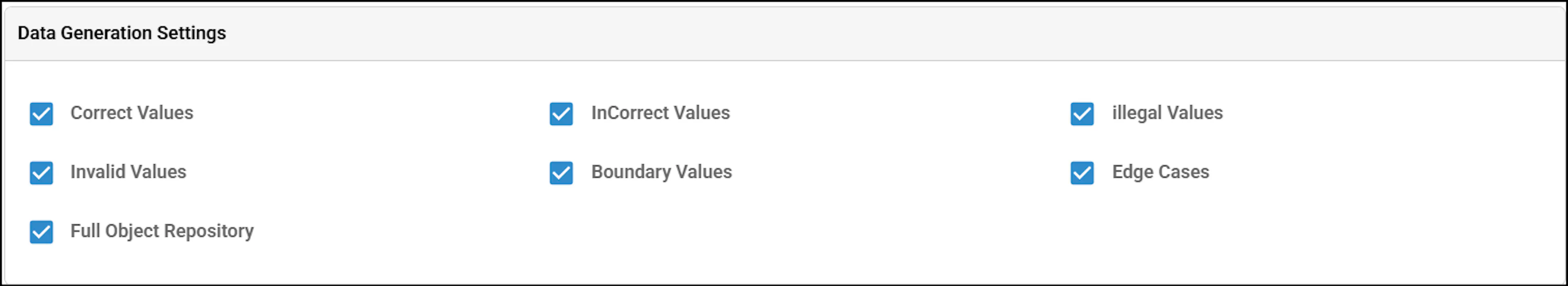

4. Check that all options in the Data Generation settings are selected. To find this, Navigate to Settings > Data Generation Settings. By default, Correct Values is selected. Enable the rest of the options and click Update.



5. After Node configuration, you must record a scenario using Record Scenario feature. For more information on recording a scenario, see Record Scenario article.

6. Upon recording the scenarios, you have to generate test cases.

7. To generate test cases, click the Generate button in Test Design after checking the scenario list.

8. Test Cases are generated successfully pop-up appears. Click View Test Cases to view test cases.

9. The algoQA platform generates a Feature File with combinatorial data sets.



Configuring User-Specific Combinatorial Data Generation Using Node Configuration

Perform the following:
